Manual Bead Roller, 200 mm Throat, 4 Die Sets, BOKA TB-12 Profiles ...

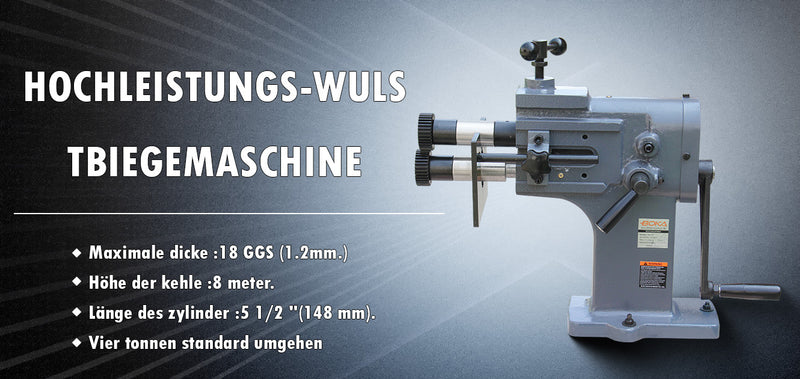

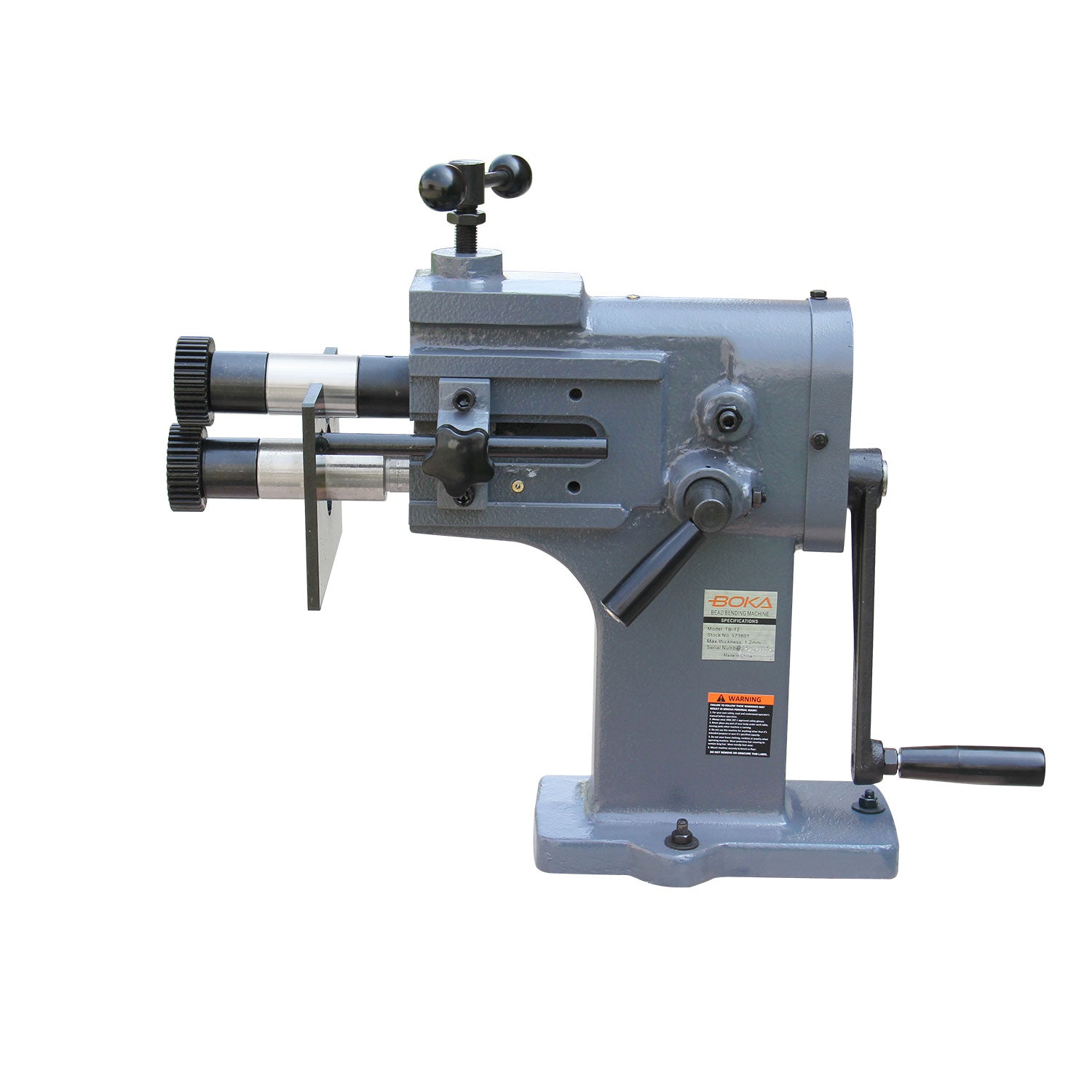

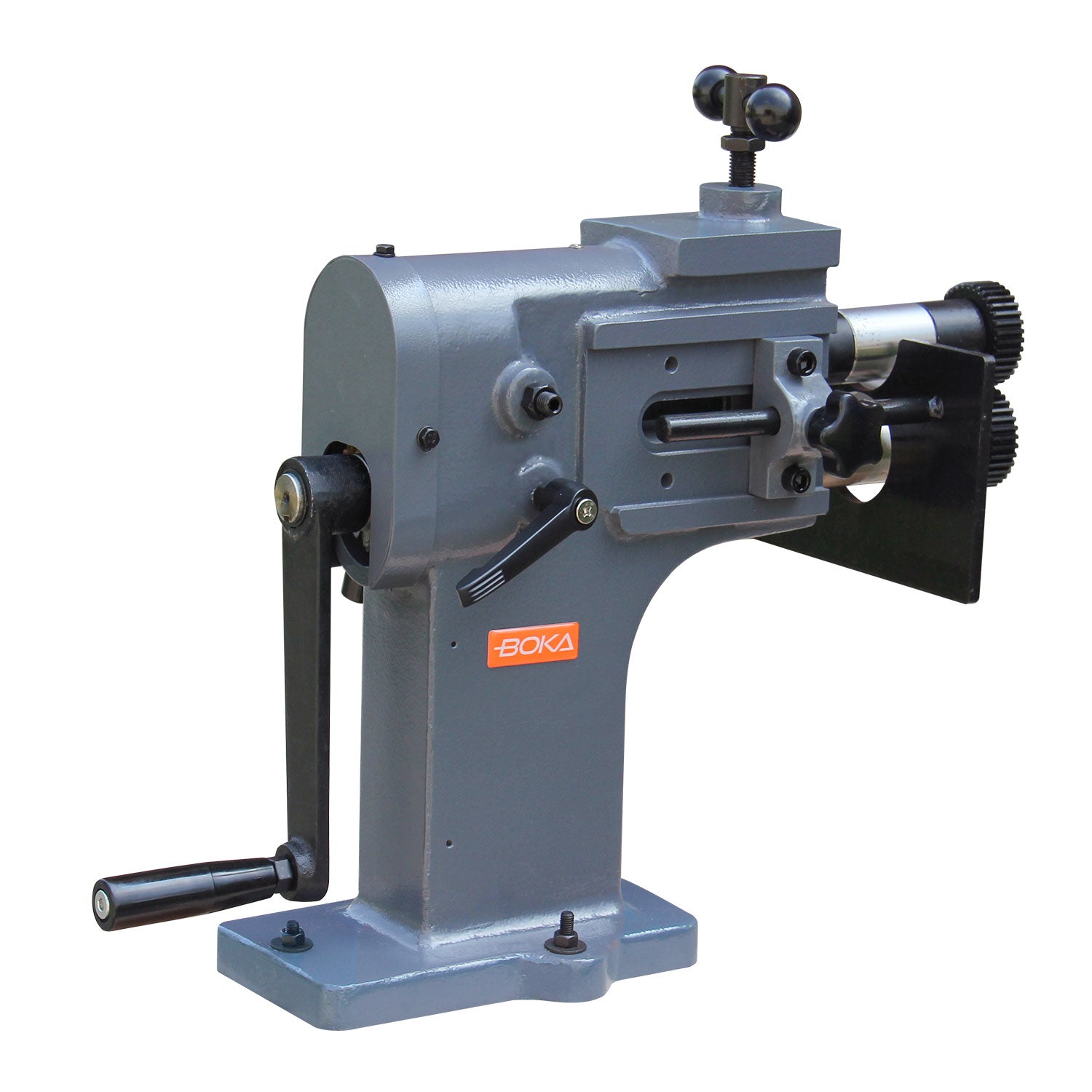

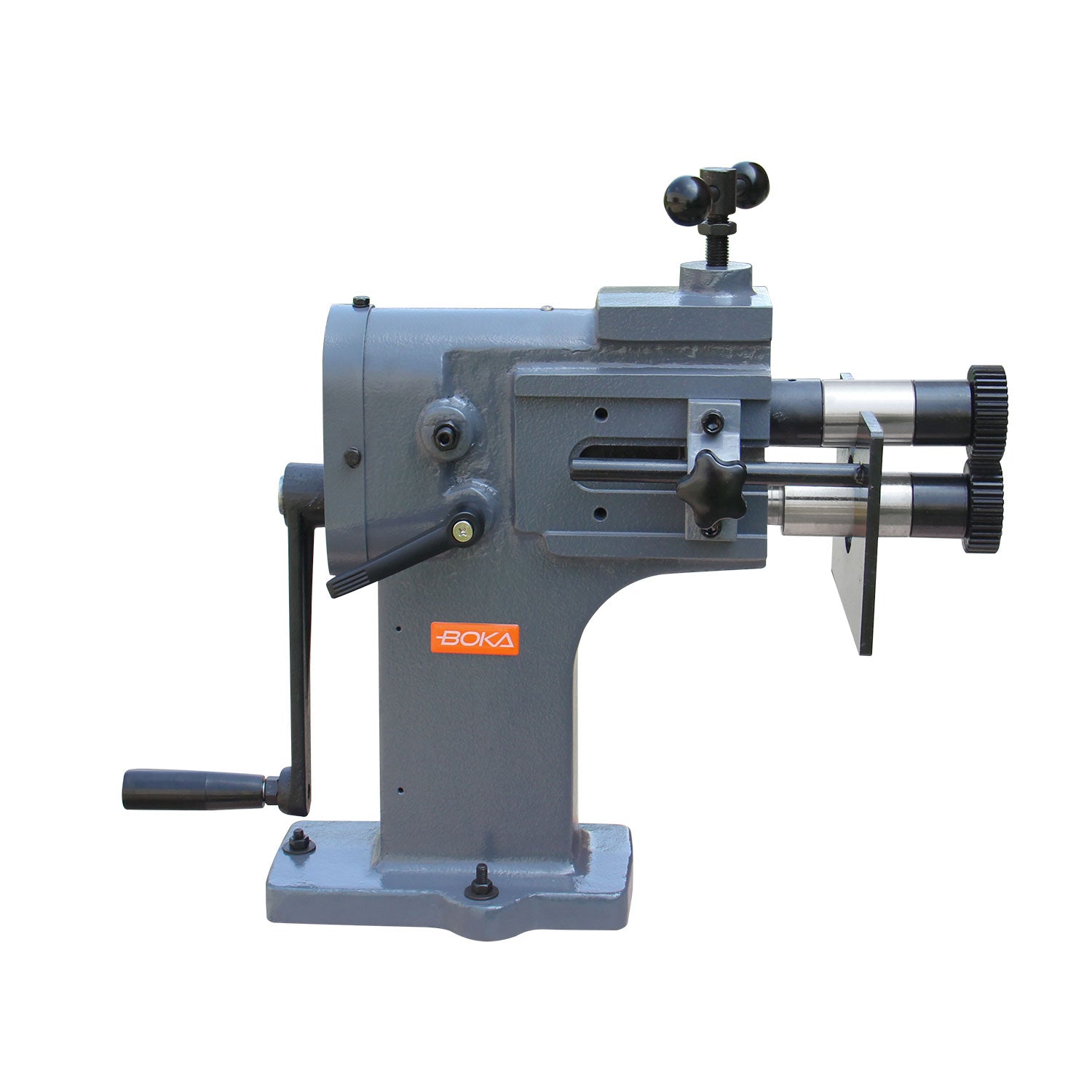

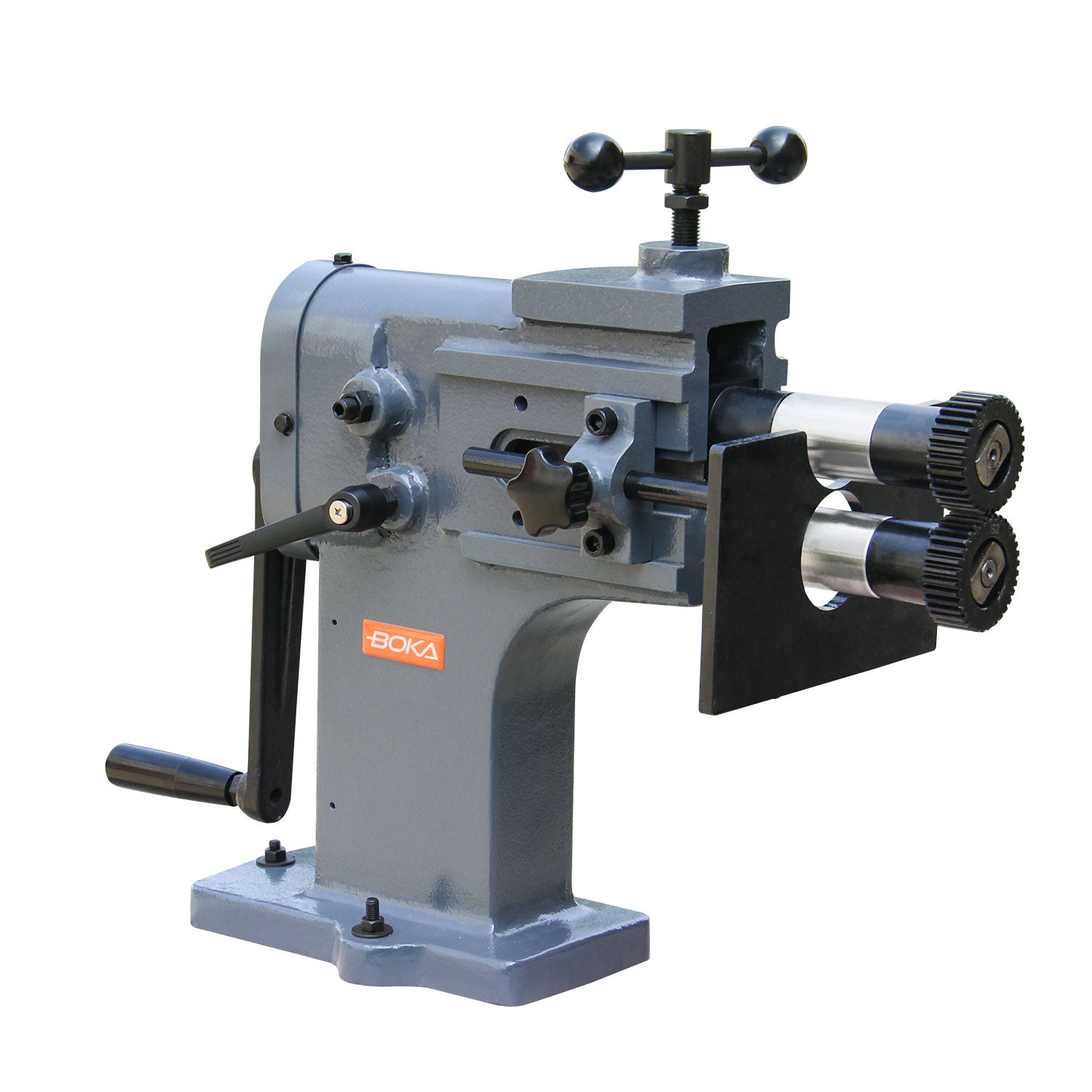

BOKA TB-12 Manual Sheet Metal Bead Roller
The TB-12 is a hand-operated rotary forming machine for local beads, crimped tube ends and stepped sheet metal edges. Its 200 mm throat depth provides access for forming suitable sheets and cylindrical workpieces used in ventilation fabrication, sheet metal assembly and repair work.

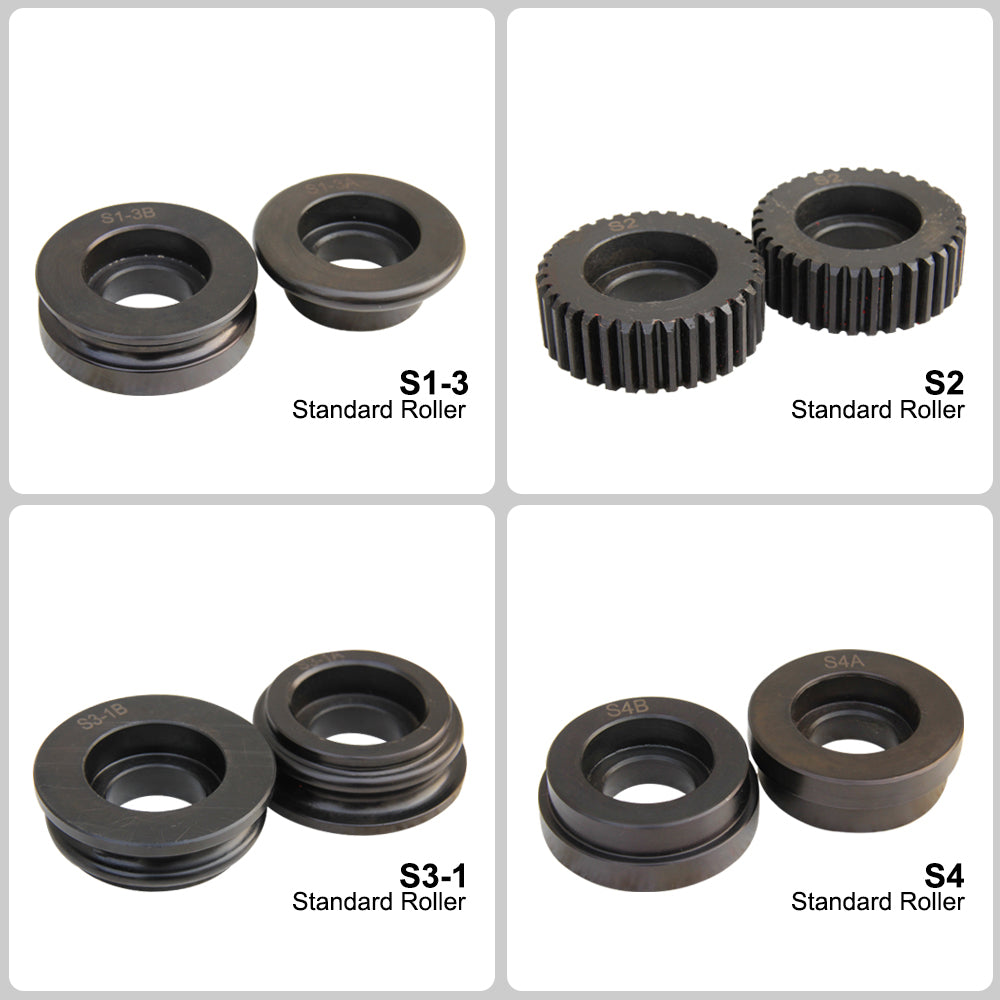

Four standard forming die sets

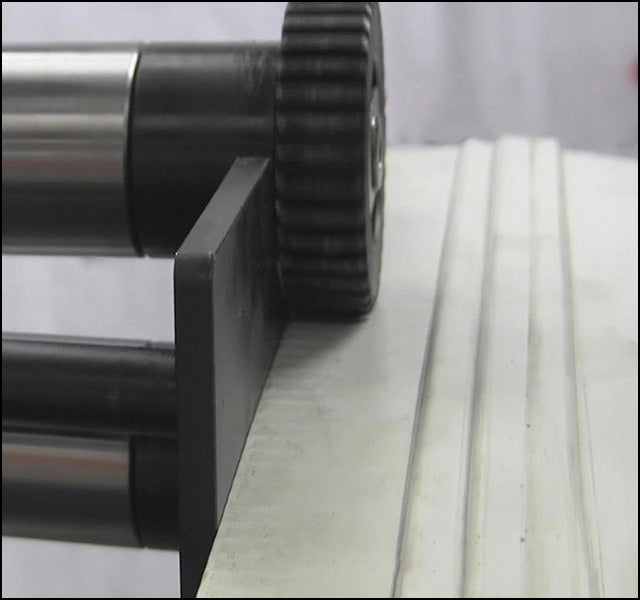

- S1: Rounded bead profile

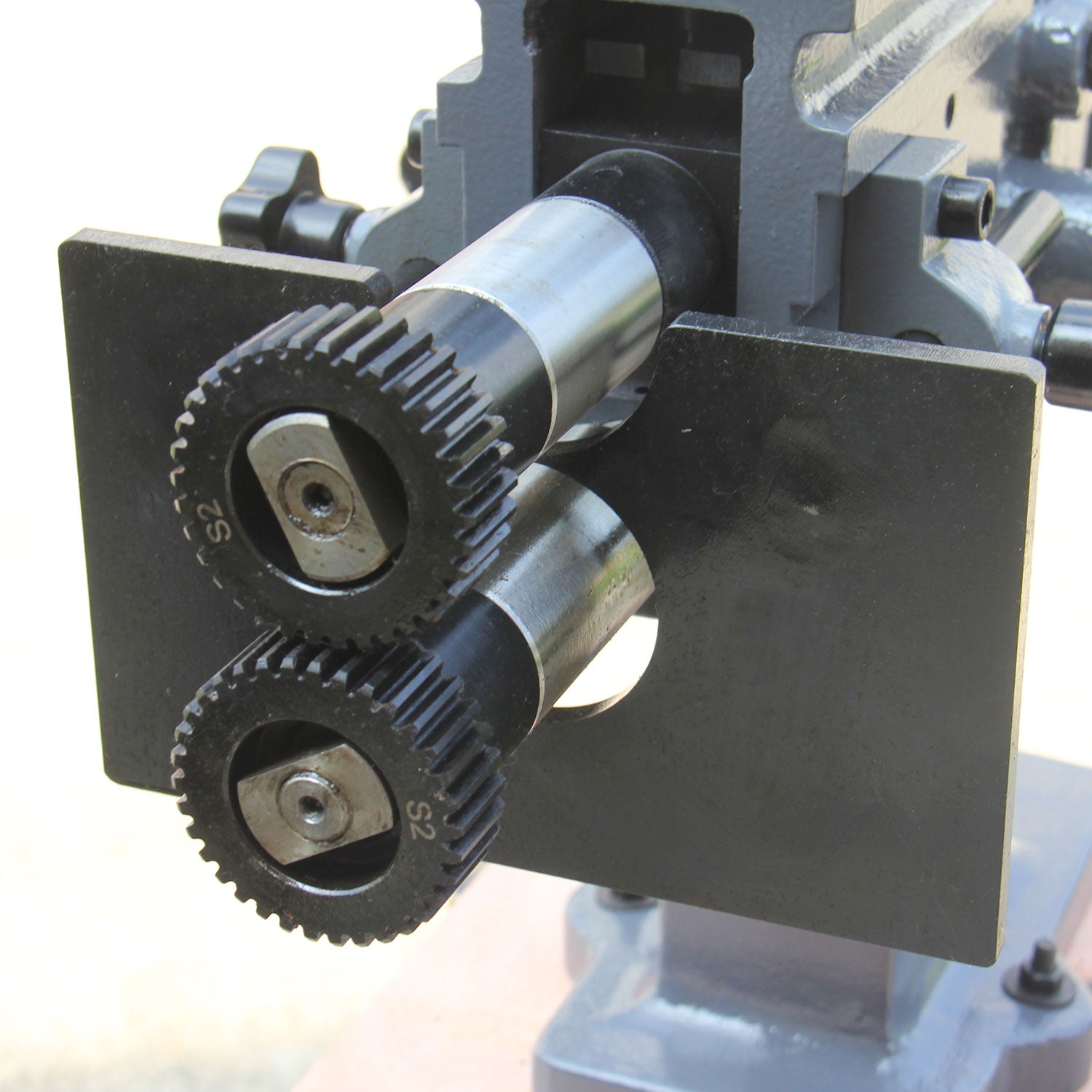

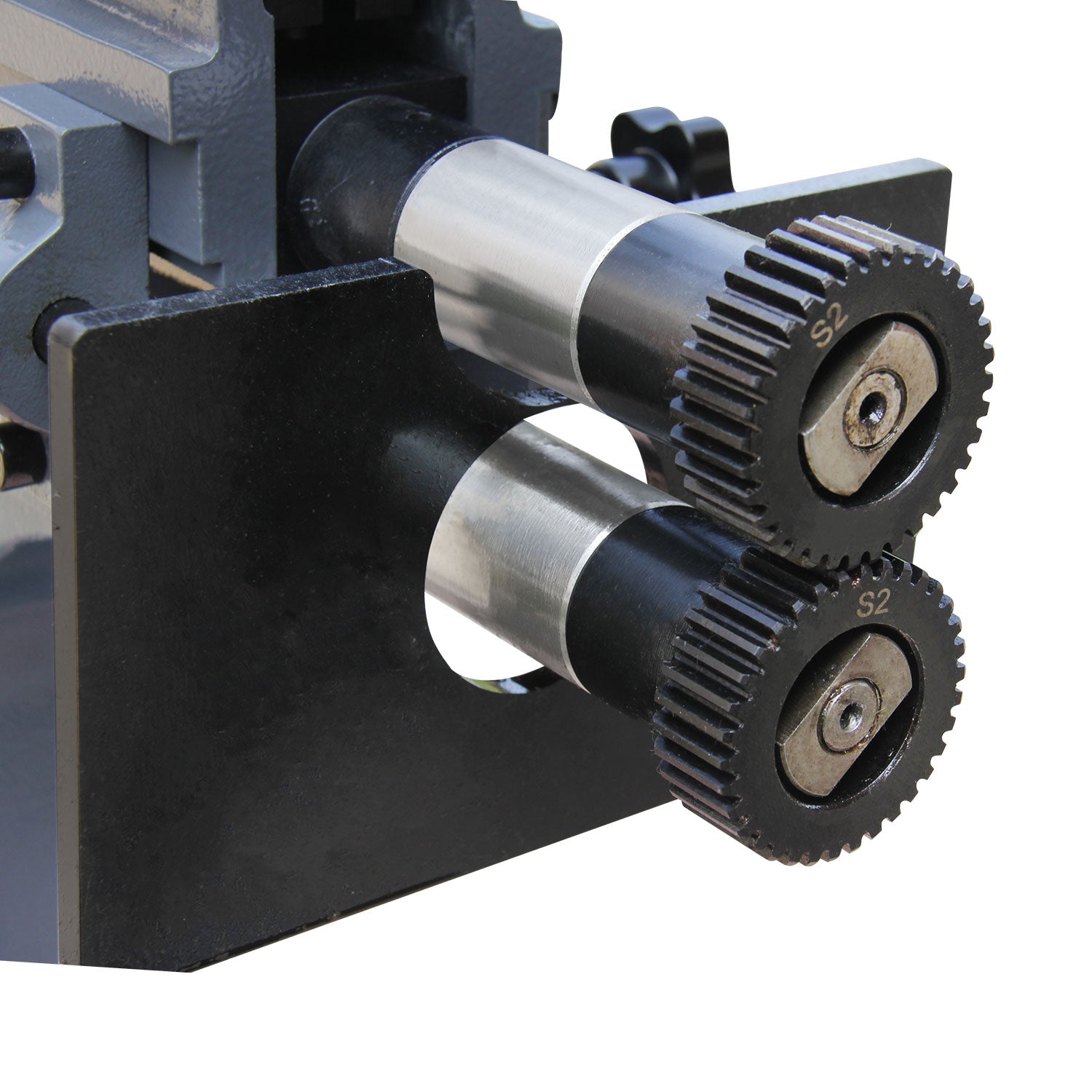

- S2: Tube-end crimping profile
- S3: An alternative bead profile with a different contour

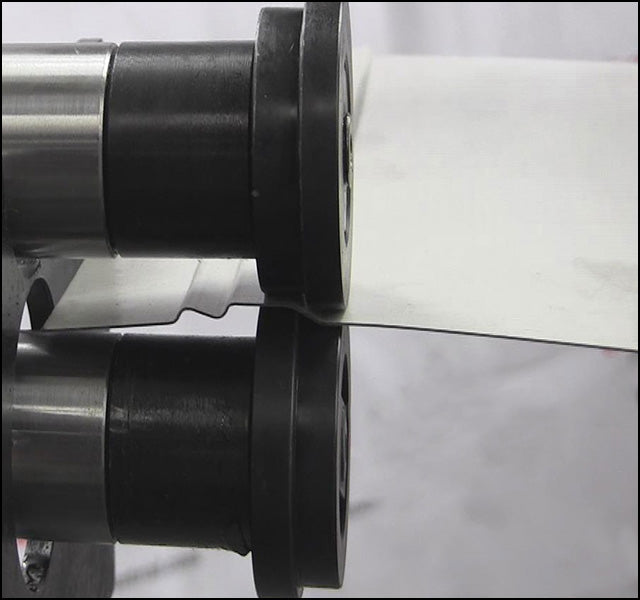

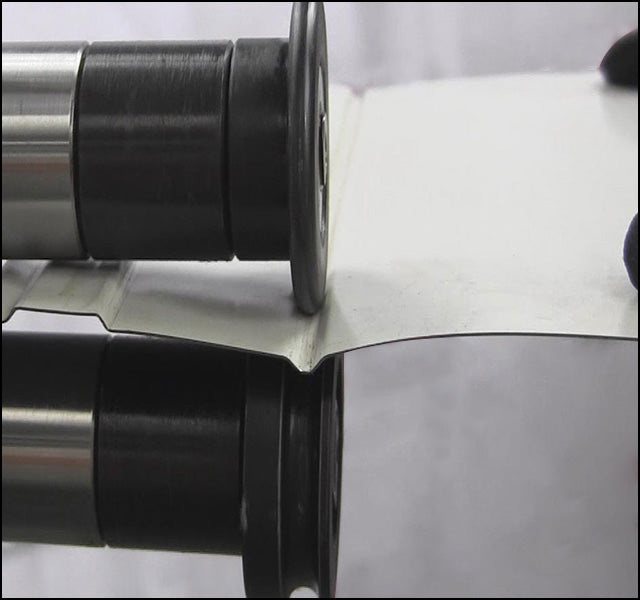

- S4: Stepped-edge profile
Use the dies as matched sets. Eight additional profiles, E1 to E8, are available as optional accessories and must be purchased separately.
Adjustable tooling alignment
The upper shaft moves vertically to open the rolls and adjust their spacing. The lower shaft slides axially and locks in position, allowing the upper and lower profiles to be aligned for the selected operation.
Hand-operated workshop setup
The hand crank controls feed without an electrical connection. Secure the cast iron machine body to a load-bearing workbench and leave adequate clearance for the handle and workpiece. This manual TB-12 should not be confused with the powered ETB-12.

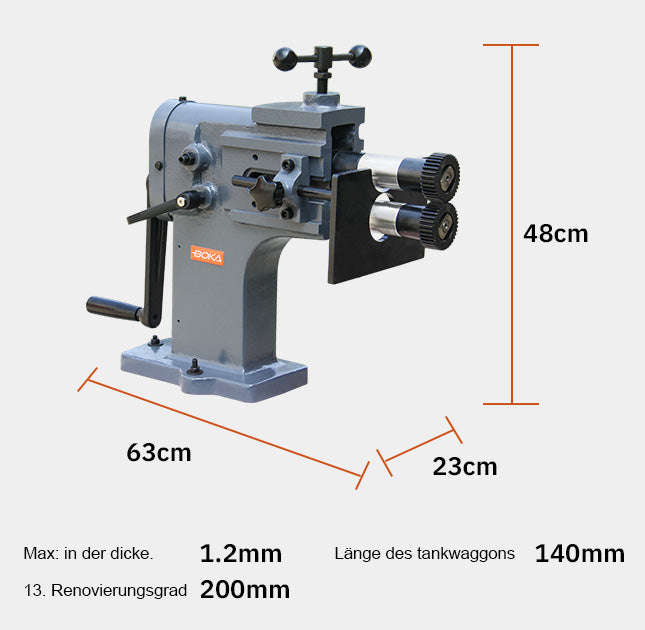

Specifications
- Model: TB-12
- Drive: Manual hand crank
- Throat depth: 200 mm
- Nominal maximum sheet thickness listed in the manual: 1.2 mm
- Specified shaft centre distance: 56 mm; roll spacing is adjustable
- Machine body: Cast iron
- Workbench mounting holes: 13 mm
- Standard tooling: Four matched die sets, S1 to S4
- Optional tooling: Eight additional profiles, E1 to E8
The 1.2 mm figure is not a universal capacity for all metals or hardness conditions. Suitability depends on the material and forming profile. This machine forms local profiles; it is not a slip roll for rolling whole sheets into cylinders. Secure the machine before use, follow the lubrication instructions and keep hands, loose clothing and jewellery clear of moving rolls.
Payment and security
How is the payment?
Your payment details are collected securely. We will not store any digital data related to our credit card or have access to your credit card information.
Function Indication
1. Body made of cast iron.
2. Max. 200 mm projection depth.
3. Adjustable lower spindle.

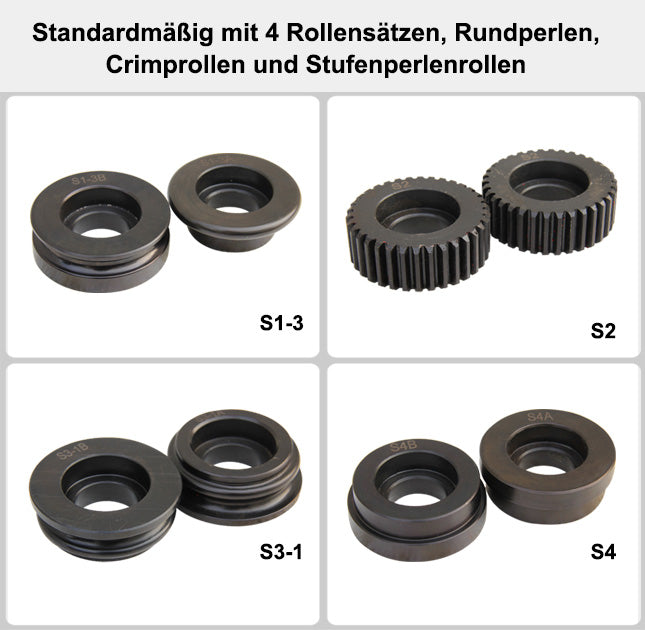

4. Standard with 4 sets of rollers, round beads, crimp rollers and step bead rollers.
5. The upper handle moves the upper shaft vertically so that it can be easily opened and the material can be filled.
6. The adjustable depth on the bottom allows you to achieve a customized profile by moving your rollers.
7. The bead bending machine produces offset plates, joints and other parts of round tubes by pressing the thin plates into bars of specific shapes.
1. Body made of cast iron.
2. Max. 200 mm projection depth.
3. Adjustable lower spindle.
4. Standard with 4 sets of rollers, round beads, crimp rollers and step bead rollers.
5. The upper handle moves the upper shaft vertically so that it can be easily opened and the material can be filled.
6. The adjustable depth on the bottom allows you to achieve a customized profile by moving your rollers.
7. The bead bending machine produces offset plates, joints and other parts of round tubes by pressing the thin plates into bars of specific shapes.
Technical data

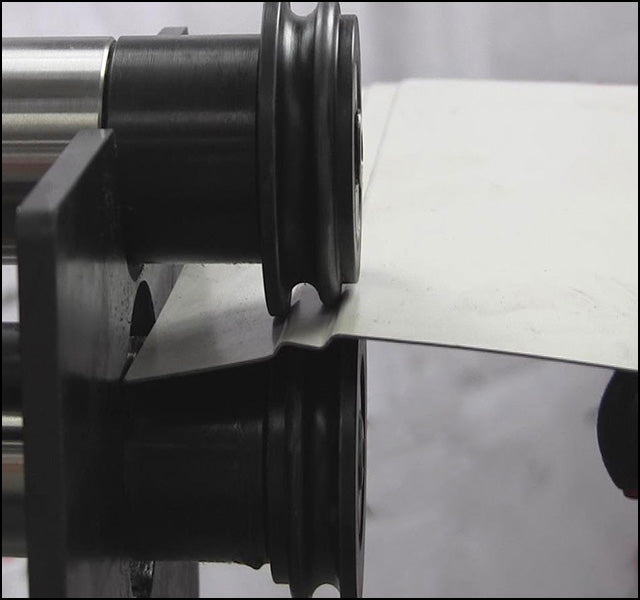

It's a role! S1-3
It's a role! S2
It's a role! S3-1
